First
keep one thing in mind that this module is called “Thermocouple”, not
“Peltier”. It is famous by this name because now days it’s one out of two
effects is mostly in use, Peltier effect, which is described below. A
Thermocouple is a device known for heating, cooling and temperature sensing.
Thermocouple is used for temperature measurements in industries which is it’s only efficient application. For heating and cooling applications, scientists are still working so that they can make a suitable product, which uses less power and produce more heat or cooling.
Basically
it was constructed by making a joint of two different types of wires (e.g.
Iron, Copper).
When voltage is applied at it’s open terminals
one side of module gets hot while other side gets cold, this effect is known as
Peltier Effect.

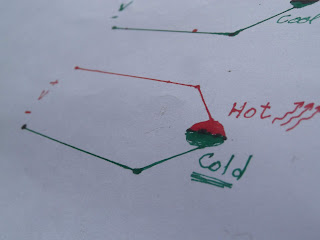

If
one side of module is heated and other one is kept cool a voltage will appear
at its open terminals, this effect is called Seed Back Effect.
Due
to advancements in the semiconductors side, P-type and N-type semiconductors
are used as an alternative of wires. As you know (may be do not) we can control
doping level in semiconductors and hence their electrical properties. Because
of their small size and excellent electrical properties, huge amount of P-type
and N-type materials are placed in a small thermocouple in specific arrangement
so that it works more efficiently.

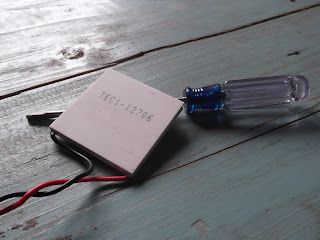

Module has some CODE over it let’s know about it.
|
CODE LETTER /
|
MEANINGS
|
|
TE
|
Thermometric Cooler/Couple
|
|
C
|
Size
|
|
1
|
Stage
Number
|
|
127
|
Numbers
of PN Type Block in Small Case
|
|
06
|
Current
Rating In Amperes (15A, 10A & 9A also available)
|
If you find something wrong please let me know, because no one is perfect and doesn't have all the knowledge. These Platforms are meant to help each other and grow.
